Quick Doweling Jig
The woodworking jig is made of Aluminum alloy,nitrided hard tool steel drill sleeve.
High hardness, wear and durability
Strong Magnetic Sheet
Doweling Jig with strong magnetic sheet and gasket design make sure that the side hole accuracy is within 0.5mm
(Since the slider moves 2mm each time it can only be aligned with 10, 14, 18, 22mm and etc thickness wood plate centers if not these plates,it can not align with the center at all without shim)
Clear Scale
Drilling Dowel Jig with clear scale,engraving process the scale value is half the thickness of the wood plate
Adjustable Drill Guides
Adjust the eccentric hole position according to the length of the connecting rod
Side hole stroke 23-43mm
Easy To Use

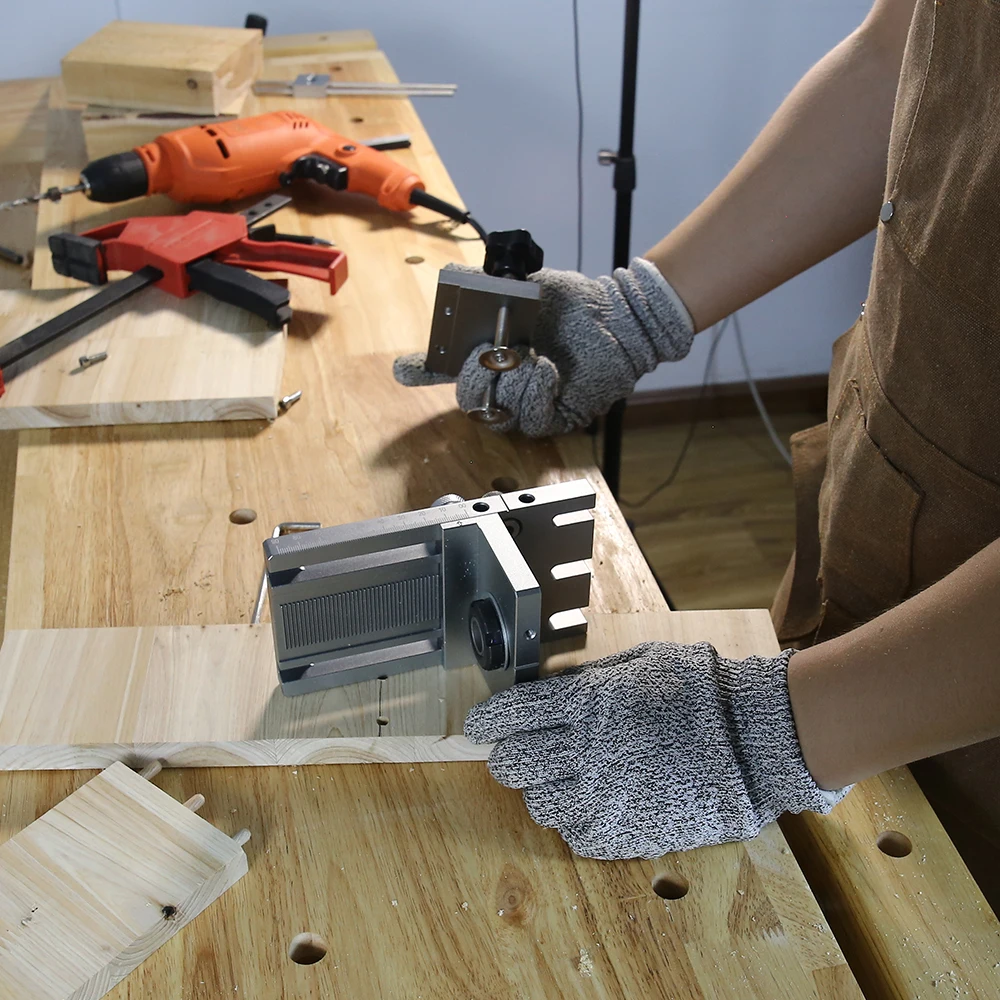

The star screw of drilling locator can hold the wood plate tightly

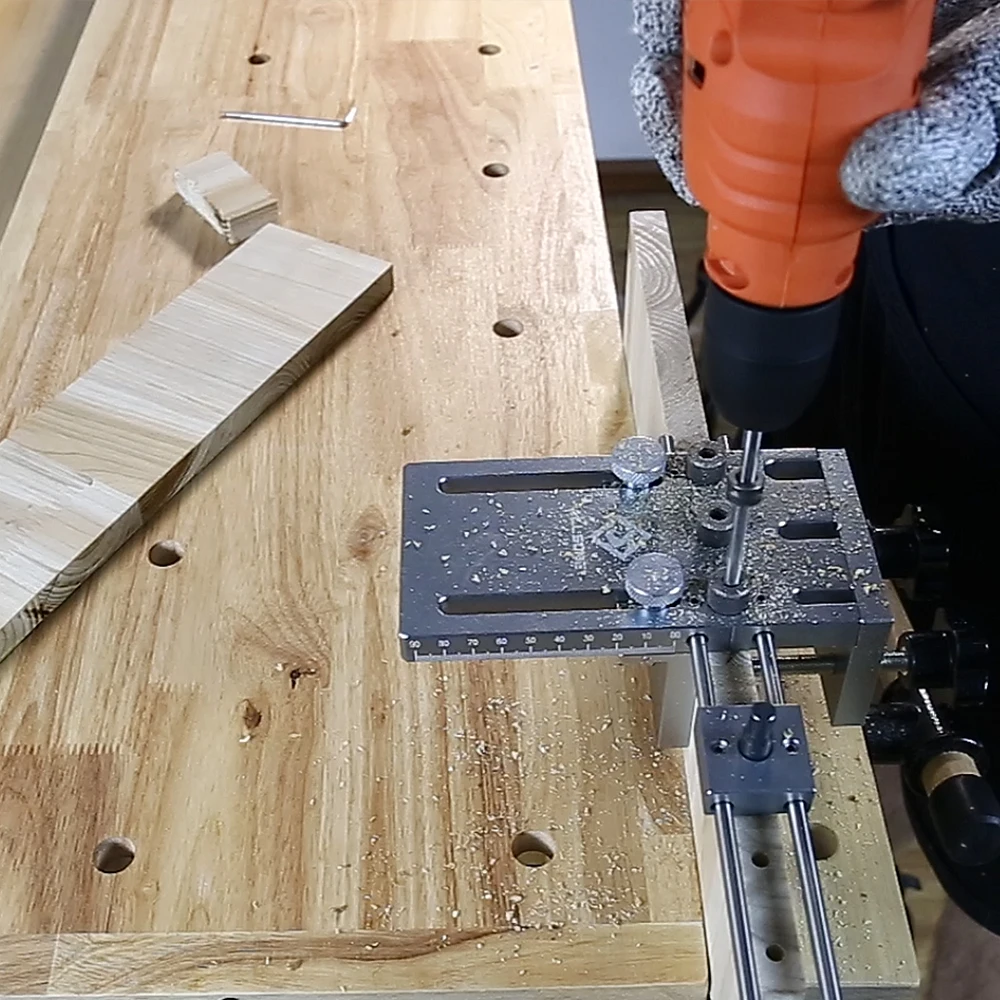

Two clamping methods,drilling is precise and convenient
Application

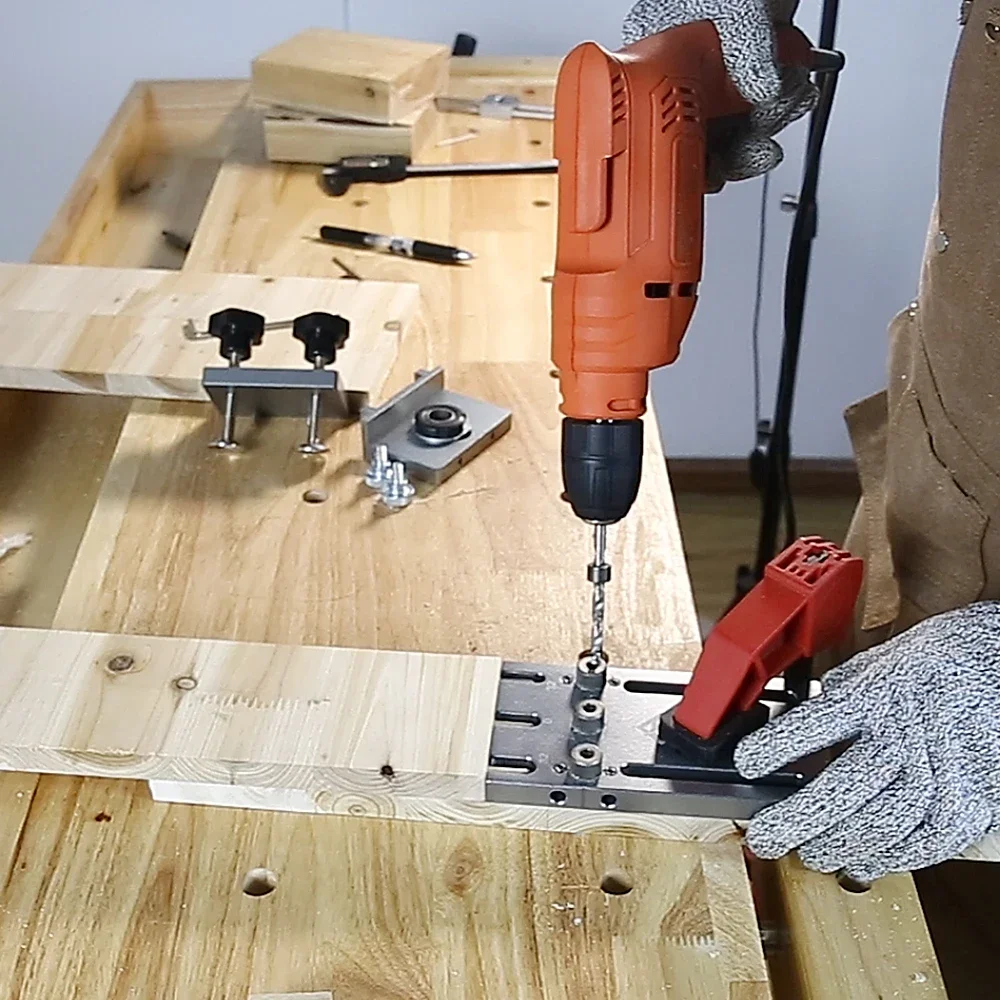

Woodworking Locator kit used for edge,surface,T-shaped,and L-shaped joints
Suitable for quick connection of furniture, woodworking DIY, etc.

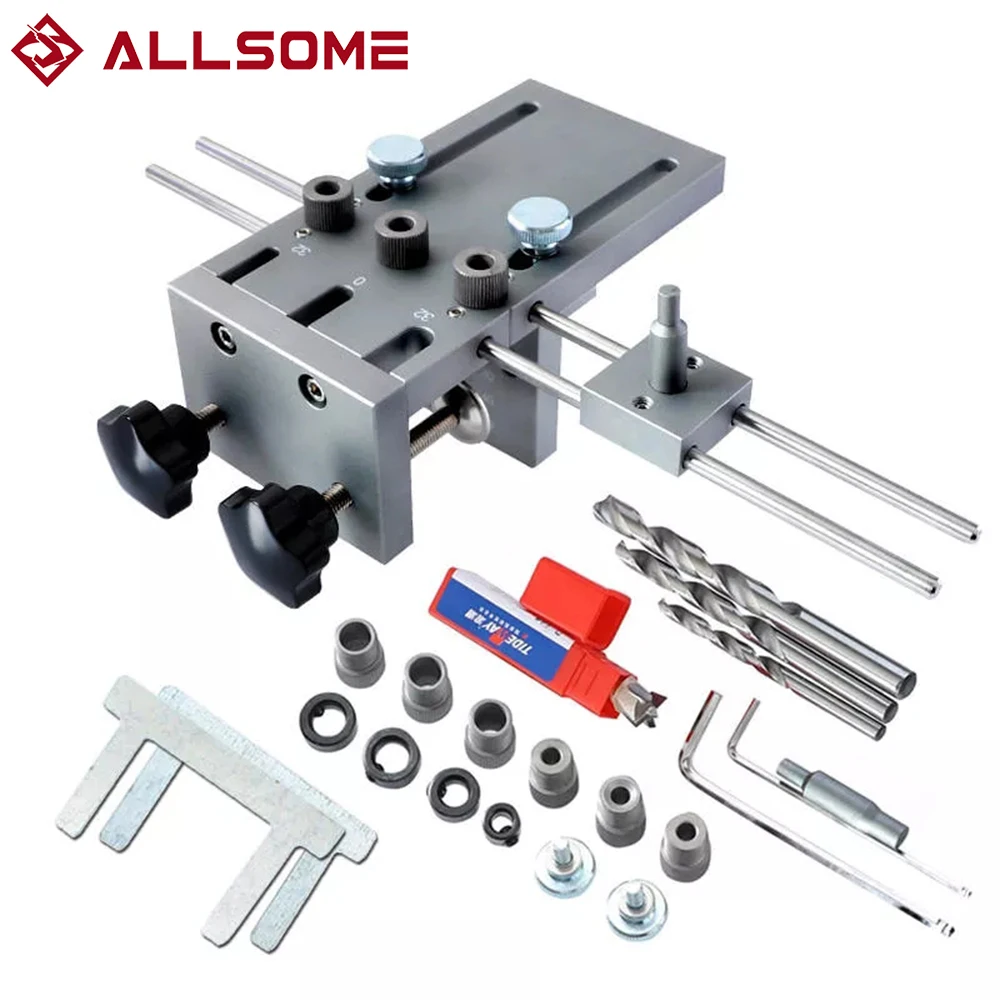

Package Included:
1 x Extension Rod
1 x Positioning Block
1 x Positioning Rod
1 x 6/8/10mm Drill Bushing
2 x Knurled Screw
1 x 6/8mm Spacing Ring
2 x Screws
1 x 15mm Drill Bits
1 x 6/8/10mm Drill Bits
1 x Crescent Wrench
1 x Clamping Plate
1 x Sliding Clock
1 x Main Body
1 x 0.5/1mm Shim
2 x Allen Wrech
